THORN ECO | AMY VARIOFLEX

Amy Varioflex

The flexibility to chose your colour temperature on site at the flick of a switch.
Ceiling recess

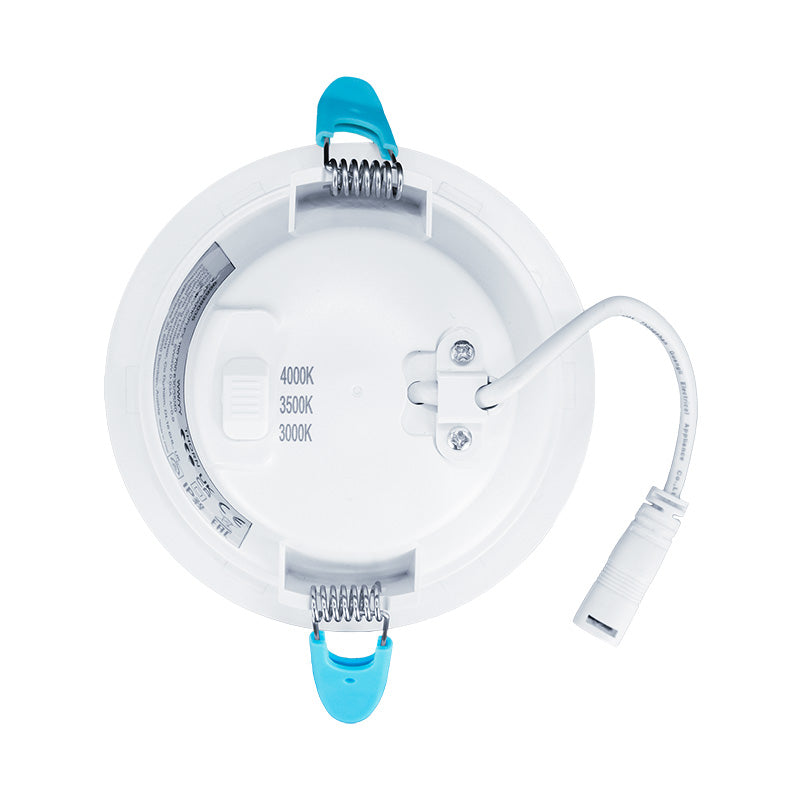

CCT slide switch
60°
PF≥0.9
CRI≥80
AC 220-240V
CE
RoHS
Price Upon Request
0.0

Wattage: 6W
Color temperature: 3000K-4000K

Learn more

Product Information

Recessed LED downlight, direct replacement for traditional 2x26W compact fluorescent downlights. Homogenously lit white opal diffuser made of TpA rated PC. High efficacy, up to 80% energy saving compared to fluorescent light sources. 220 - 240 mm cut-out diameter. AMY VARIO FLEX can be installed into a wide range of ceiling types of 2 -16mm thickness, IP44 from the room side, Impact strength: IK06. Total luminous flux: 1950 lm, Luminaire efficacy: 115 lm/W correlated colour temperature (CCT) adjustable via switch for warm white (3000K), neutral white (3500K) or cold white (4000K) to suit application use. Lifetime: 50.000hrs @L80, Colour Rendering: CRI > 80. Chromaticity tolerance (initial MacAdam): 4. Photobiological Risk Group RG0}, THD<20%. Body: Polycarbonate, white (RAL 9003), Diffuser: Polycarbonate, TPA. Tool-free connection enabling loop-in loop-out wiring. Plug&Play with "Just Emergency E3 KIT" for 3h emergency operation.Lumen package adjustable on site by 3 steps FLEX@4000K: (FLEX1 - 1950 lm (17W), FLEX2 - 1600 lm (14W), FLEX3 - 1400 lm (12W). Detailed power setting information available on www. THORNeco.com. Dimensions: Ø250 x 82 mm, weight: 0.55 kg.

Technical Specifications
Wattage6W / 13W / 17W
Color temperature3000K-4000K
Light sourceLED
Mounting typeCeiling recess
BodyPolycarbonate, white (RAL 9003)
DiffuserTpA rated opal polycarbonate
Nominal voltageAC 220-240V
Power factorPF≥0.9
Color rendering index (CRI)CRI≥80
Luminous flux6W - 700 lm
13W - 1,500 lm
17W - 1,950 lm
Luminaire efficacy115 lm/W
Beam angle60°
Ingress protectionIP44
Impact strengthIK06
Dimension6W - Ø117 x 41 mm
13W - Ø168 x 56 mm
17W - Ø230 x 82 mm
Weight6W - 0.2 kg
13W - 0.36 kg
17W - 0.58 kg
Warranty5 years
Product Drawings
100 Series Dimension
150 Series Dimension
190 Series Dimension
220 Series Dimension
Product Resources
pdf Datasheet
Download
pdf Manual
Download
pdf Ce Certificate
Download
